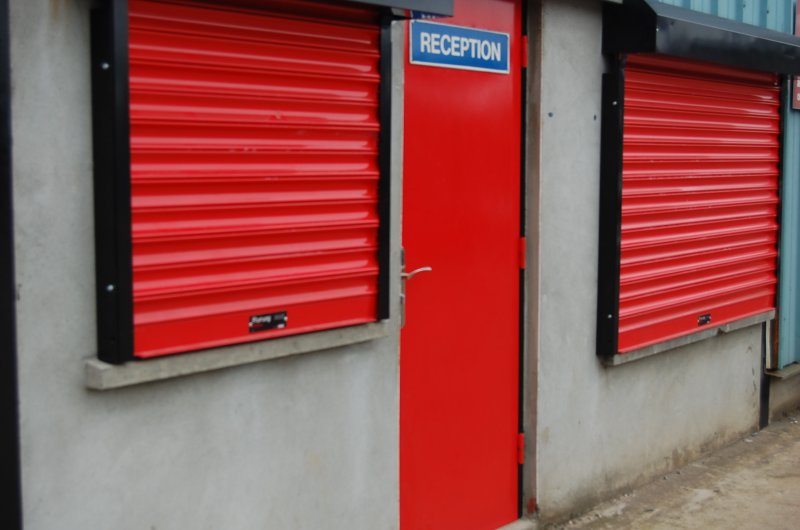

Commercial Roller Shutters

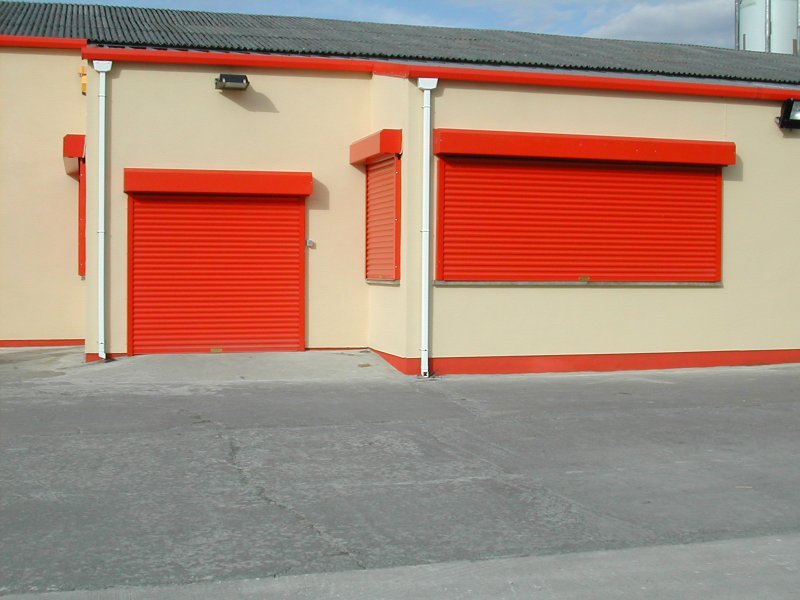

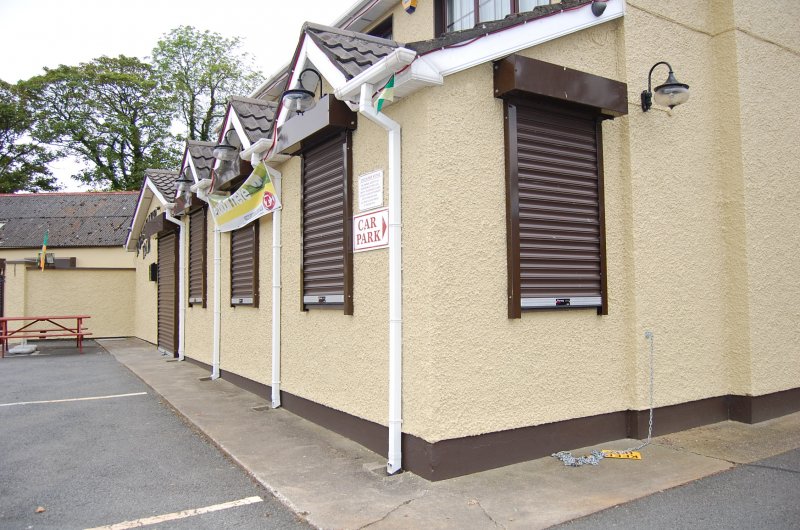

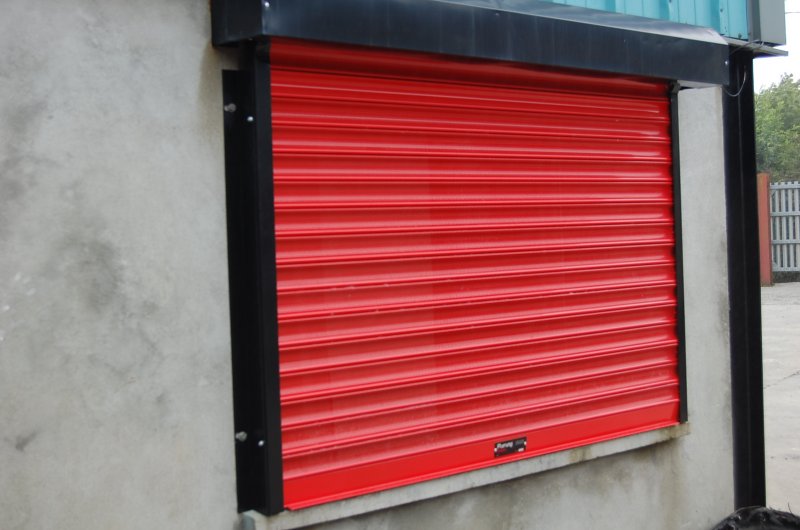

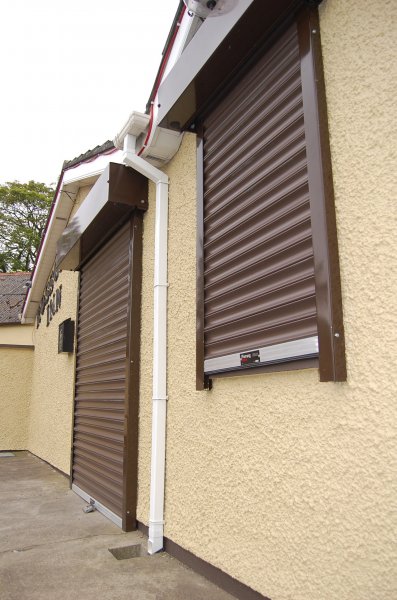

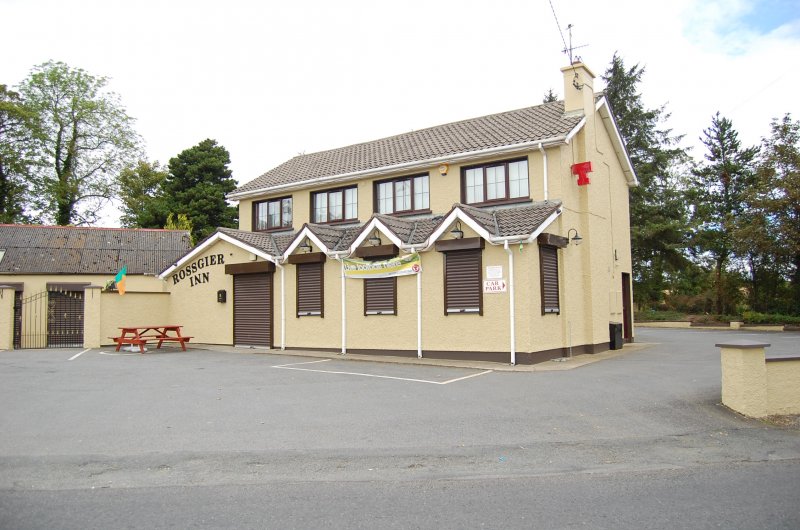

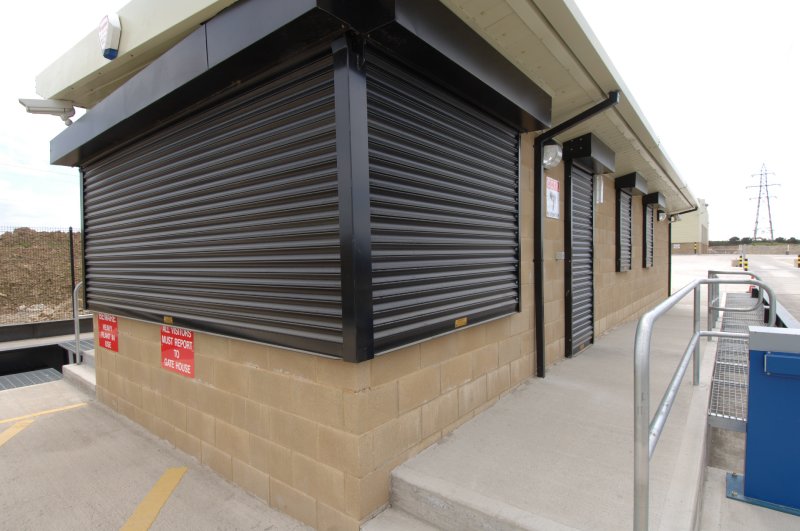

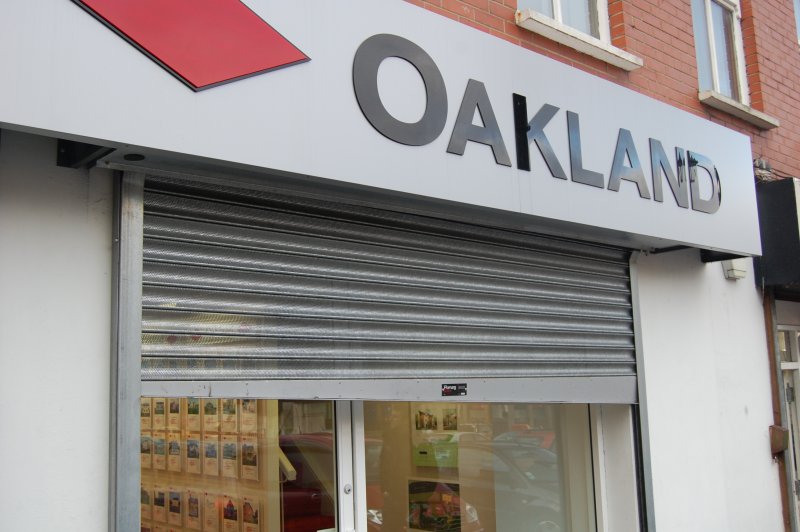

The commercial and retail sectors have got particular requirements when it comes to security and aesthetics, Fleming Commercial Roller Shutters provide all the options to keep your shop front safe, looking appropriate and when required allowing visual penetration from the outside.

Manufacture Product Name Reference
Fleming Doors Commercial Roller Shutters FD-MSD-75

Application

Designed for Industrial and Commercial application and recommended for factories / warehouses/shop fronts.

Curtain

Interlocking galvanised steel laths 75mm, laterally by endlocks riveted to both ends on alternative laths. Bottom lath galvanised T bar.

Curtain Options

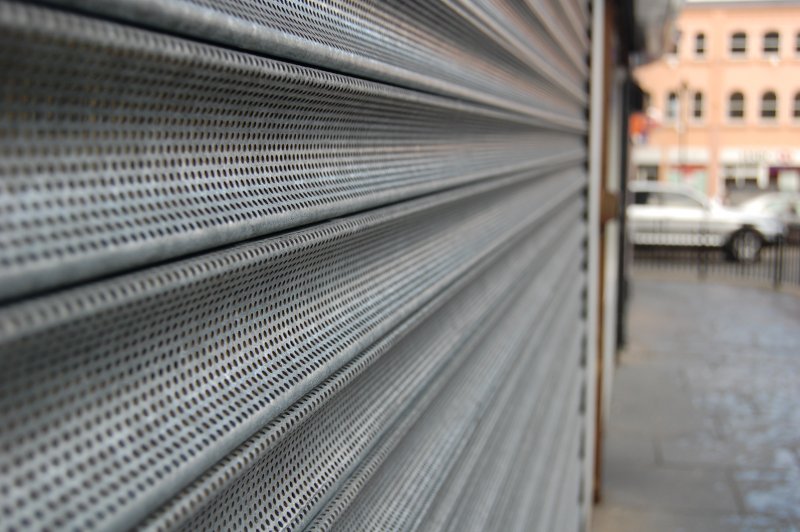

Perforated, diamond punched or solid with Galvanised to Powder Coated: Standard RAL or BS codes

Guides

Galvanised steel U section guides attached to galvanised angle.

Barrel

A mild steel seamless tube to;BS4760 Grade 50C. Barrel diameter and thickness engineered to specific size of opening size.

Arrangement

Vertical roller shutter for face / reveal fixing.  Suitable for both fixing to block work and/or steel.

End Plates

The endplates for the safety brake and motor unit are manufactured from mild steel plates of varying thickness and incorporate the necessary fixing positions for securing back to the opening structure. A motor/barrel canopy will come as standard.

Finish

Standard finish is galvanised steel curtain and guides with non-galvanised components.

Door curtain, guides, end plates and canopy can be supplied BS EN 12206-1 polyester powder coated (PPC) to the Fleming Doors Colour Range of 30No. BS and RAL colours.

  • Non-standard colours are available on request.
  • PVC curtain also available

Operation

As standard a single phase tube motor, specified to lift curtains weight. The motor unit is prewired to a plug & a 3 station push button unit. The motor unit incorporates integral travel & safety limits and thermal cut out. The unit also includes a manual override device complete with widing handle.

Size

Maximum dimensions 4000mm x 4000mm under standard construction.  Larger sizes available by specification.

Performance

  • CE marked
  • BS EN 13241 – 1 (2005)
  • Electric operated roller doors
  • (89/106/EC; 98/37/EC; 89/336/EC)

Accessories

  • Key Switch
  • Key Switch Security Box
  • Remote Control Unit c/w 2No. Handsets
  • Photocells
  • Additional Remote Handsets
  • Rubber Seal (suitable for T Bar Bottom Bar only)
  • Top Brush
  • Side Brush
  • Canopy
