Industrial Kingspan Panel Door

In order to meet the increasing demand for energy efficiency, Fleming Doors has added the Industrial Kingspan Panel Door to it’s range of products. For maximum thermal efficiency, low maintenance and high quality aesthetic finish look no further. Commonly used in cold house, fridge rooms and insulated buildings of any type.

Manufacture Product Name Reference
Fleming Doors Industrial Kingspan Panel Door FD-ISD-40

Application

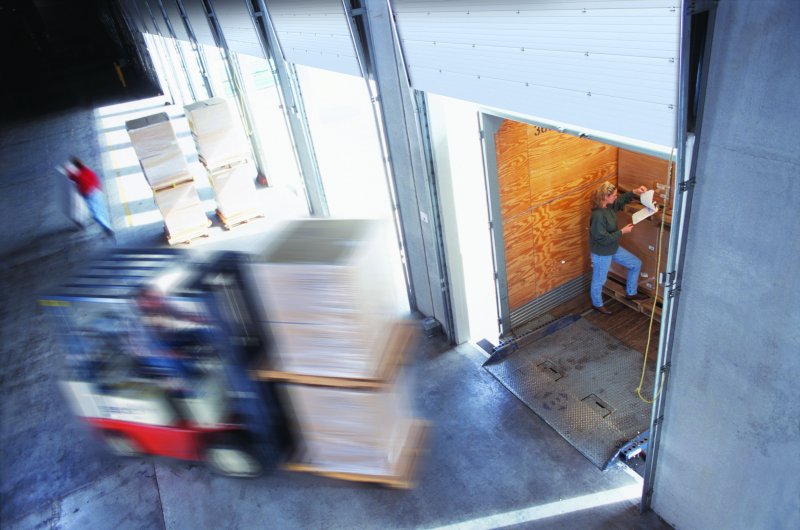

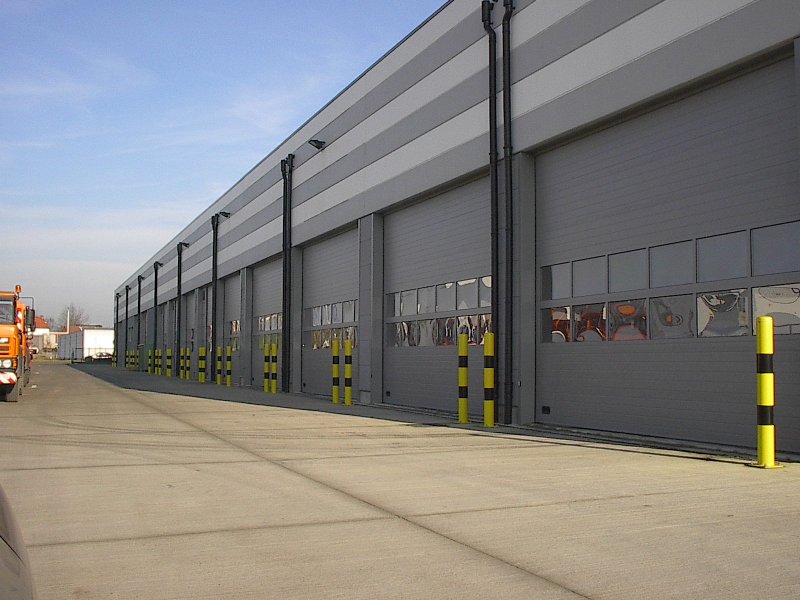

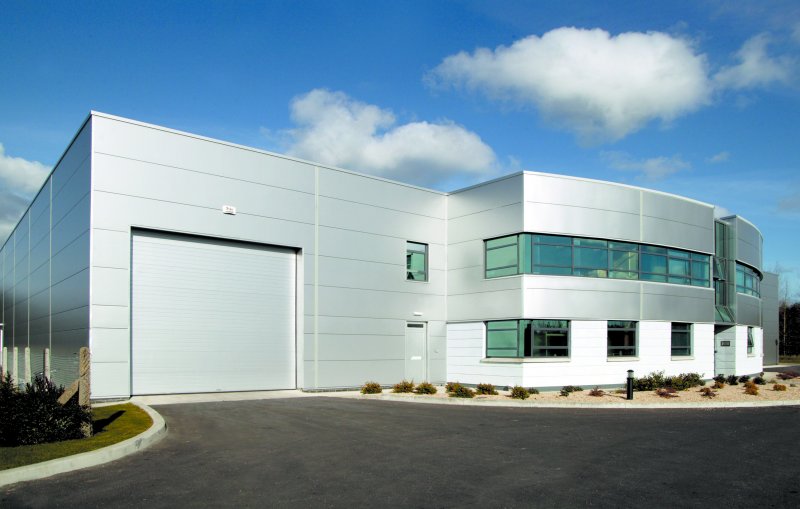

The Industrial Kingspan Panel Door is a double skinned 40mm thick insulated sectional door ideal for use as vehicle access / large doors on warehousing, factories, commercial units and garages.

Curtain

Double skinned 40mm Kingspan insulated panels.

Curtain Options

i. External Finish Kingspan XL ForteTM

Goosewing Grey 10A05, Merlin Grey 18B25, Azure Blue 18C39, Olive Green 12B27, Van Dyke

Brown 08B29, Sapphire Blue RAL 5003, Leaf Green RAL 6002, Khaki Green 12B21, Flame Red

04E53, Cornflower Blue 18E53

ii. External Finish Polyester Stucco Embossed

White RAL 9010, Grey White RAL 9002, Sepia Brown RAL 8014, Grey Brown RAL 8019, Gentian

Blue RAL 5010, Light Ivory RAL 1015, Fir Green RAL 6009

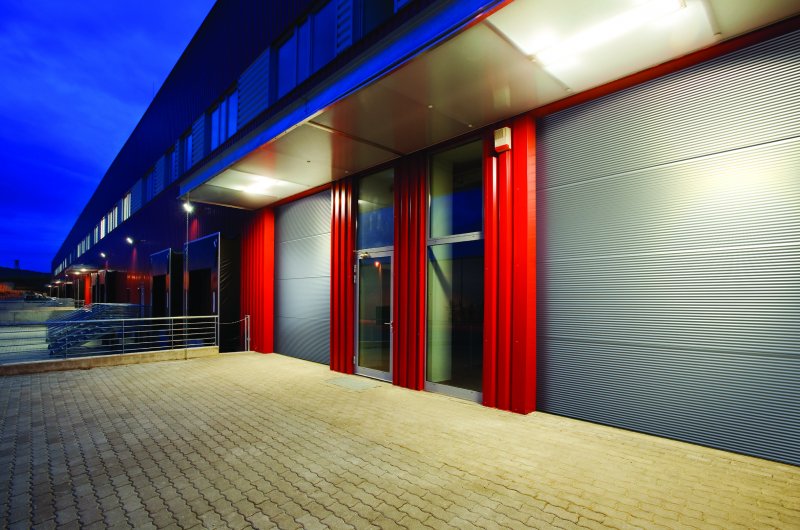

iii. External Finish Micro Rib Polyurethane [3x scratch resistance]

Metallic Silver RAL 9006plus, Traffic Grey Aluminium RAL 7042plus, Anthracite RAL 7016plus.

End Plates

The endplates for the safety brake and motor unit are manufactured from mild steel plates of varying thickness and incorporate the necessary fixing positions for securing back to the opening structure.

Track Arrangement

  • i. Standard Lift
  • ii. Standard Lift Follow-the-Roof
  • iii. High Lift
  • iv. High Lift Follow-the-Roof
  • v. Vertical Lift
  • vi. Low Headroom

Operation

As standard an industrial duty 3 phase or single phase chain drive motor, specified to lift curtains weight. The motor unit is prewired to a plug & a 3 station push button unit. The motor unit incorporates integral travel & safety limits and thermal cut out. The unit also includes a manual override and integrated safety brake mechanism.

Size

Maximum dimensions 6000mm x 6000mm under standard construction.  Larger sizes available by specification.

Performance

  • Thermal performance: Door panel 0.51 W/m2K, Installed door 1.2 W/m2K
  • Air permeability [EN12426]:<12m2/m3.hr [Class 2]
  • Wind Resistance [EN 12424]: 1300Pa [Class 5]
  • Water penetration [EN12425]: 170Pa [Class 3]

Accessories

  • Key Switch
  • Key Switch Security Box
  • Remote Control Unit c/w 2No. Handsets
  • Photocells
  • Additional Remote Handsets
